The PUNCHTac®
vPEEK Anchor System
Rock-solid bite with multiple
suture-tape combinations.
The PUNCHTac® vPEEK Anchor System is designed…… lorem ipsum dolor sit amet, consectetur adipiscing elit etiam fermentum pellentesque lorem in non suscipit est. Vivamus pharetra diam enim.
Available in 3.0, 3.5, 4.5 and 5.5mm regular and knotless for a range of procedures.
3.0mm PUNCHTac® vPEEK Anchor
The 3.0mm anchor provides effective soft tissue labral repairs that include SLAP tears, posterosuperior lesions and Bankart lesions. It is preloaded with a #2 suture providing substantial strength and low knot stack for Bankart procedures.
3.5mm PUNCHTac® vPEEK Anchor
The larger 3.5mm anchor is preloaded with two #2 UHMWPE suture. This anchor is indicated for patients with labral injuries, elbow repair/reconstruction, and procedures around foot and ankle.
4.5mm PUNCHTac® vPEEK Knotless Anchor
The 4.5mm knotless anchor addresses full thickness tears of the rotator cuff with lateral row fixation. This anchor is preloaded with a #2 retention suture. The anchor is modular providing the surgeon intraoperative flexibility to load either a single 1.5mm DFX Tensile Tape, double #2 sutures or a combination.
4.5mm Threaded PUNCHTac® vPEEK Anchor
Dual-lead, tight pitch thread design results in Dunamis 4.5mm Threaded anchor having exceptional core strength, pull-out resistance and speed of implantation – all comparable to larger conventional 5.5mm threaded anchors.
5.5mm PUNCHTac® vPEEK Anchor
The 5.5mm fully threaded anchor provides surgeons with a more effective repair by selecting a combination of fiber technology that is best suited for a specific repair.
What about footprint coverage or a broader tendon-to-bone contact area?
The PUNCHTac® 5.5mm anchors are preloaded with the following tape combinations:
6.5mm PUNCHTac® vPEEK Anchor
For repairs that present poor bone quality Dunamis Medical offers a triple-loaded 6.5mm fully threaded anchor. It’s preloaded with two #2 Force DFX Sutures and one 1.5mm DFX Tensile Tape.
3.0mm PUNCHTac® vPEEK Anchor
The 3.0mm anchor provides effective soft tissue labral repairs that include SLAP tears, posterosuperior lesions and Bankart lesions. It is preloaded with a #2 suture providing substantial strength and low knot stack for Bankart procedures.
3.5mm PUNCHTac® vPEEK Anchor
The larger 3.5mm anchor is preloaded with two #2 UHMWPE suture. This anchor is indicated for patients with labral injuries, elbow repair/reconstruction, and procedures around foot and ankle.
4.5mm PUNCHTac® vPEEK Knotless Anchor
The 4.5mm knotless anchor addresses full thickness tears of the rotator cuff with lateral row fixation. This anchor is preloaded with a #2 retention suture. The anchor is modular providing the surgeon intraoperative flexibility to load either a single 1.5mm DFX Tensile Tape, double #2 sutures or a combination.
4.5mm Threaded PUNCHTac® vPEEK Anchor
Dual-lead, tight pitch thread design results in Dunamis 4.5mm Threaded anchor having exceptional core strength, pull-out resistance and speed of implantation – all comparable to larger conventional 5.5mm threaded anchors.
5.5mm PUNCHTac® vPEEK Anchor
The 5.5mm fully threaded anchor provides surgeons with a more effective repair by selecting a combination of fiber technology that is best suited for a specific repair.
What about footprint coverage or a broader tendon-to-bone contact area?
The PUNCHTac® 5.5mm anchors are preloaded with the following tape combinations:
6.5mm PUNCHTac® vPEEK Anchor
For repairs that present poor bone quality Dunamis Medical offers a triple-loaded 6.5mm fully threaded anchor. It’s preloaded with two #2 Force DFX Sutures and one 1.5mm DFX Tensile Tape.
Ordering Information PUNCHTac® vPEEK Anchor System
| Product No. | Box of 5 | |
| DFX0028 | 3.0mm PunchTac® Anchor vPEEK | Preloaded with One #2 DFX Force Suture (UHMWPE) |
| DFX0029 | 3.5mm Salvage PunchTac® Anchor vPEEK | Preloaded with Two #2 DFX Force Suture (UHMWPE) |
| DFX0030 | 4.5mm Knotless PunchTac® Anchor vPEEK | Preloaded with One #2 DFX Force Suture (UHMWPE) |
| DFX0031 | 5.5mm PunchTac® Threaded Anchor vPEEK | Preloaded with Two #2 DFX Force Suture (UHMWPE) |
| DFX0035 | 5.5mm PunchTac® Threaded Anchor vPEEK | Preloaded with Two 2mm DFX Tensile Tape (UHMWPE) |
| DFX0036 | 5.5mm PunchTac® Threaded Anchor vPEEK | Preloaded with Two #2 DFX Force Suture and One 1.5mm DFX Tensile Tape (UHMWPE) |
| DFX0037 | 6.5mm PunchTac® Threaded Anchor vPEEK | Preloaded with Two #2 DFX Force Suture and One 1.5mm DFX Tensile Tape (UHMWPE) |
Book your case today or
contact us now to get started.
Related Products

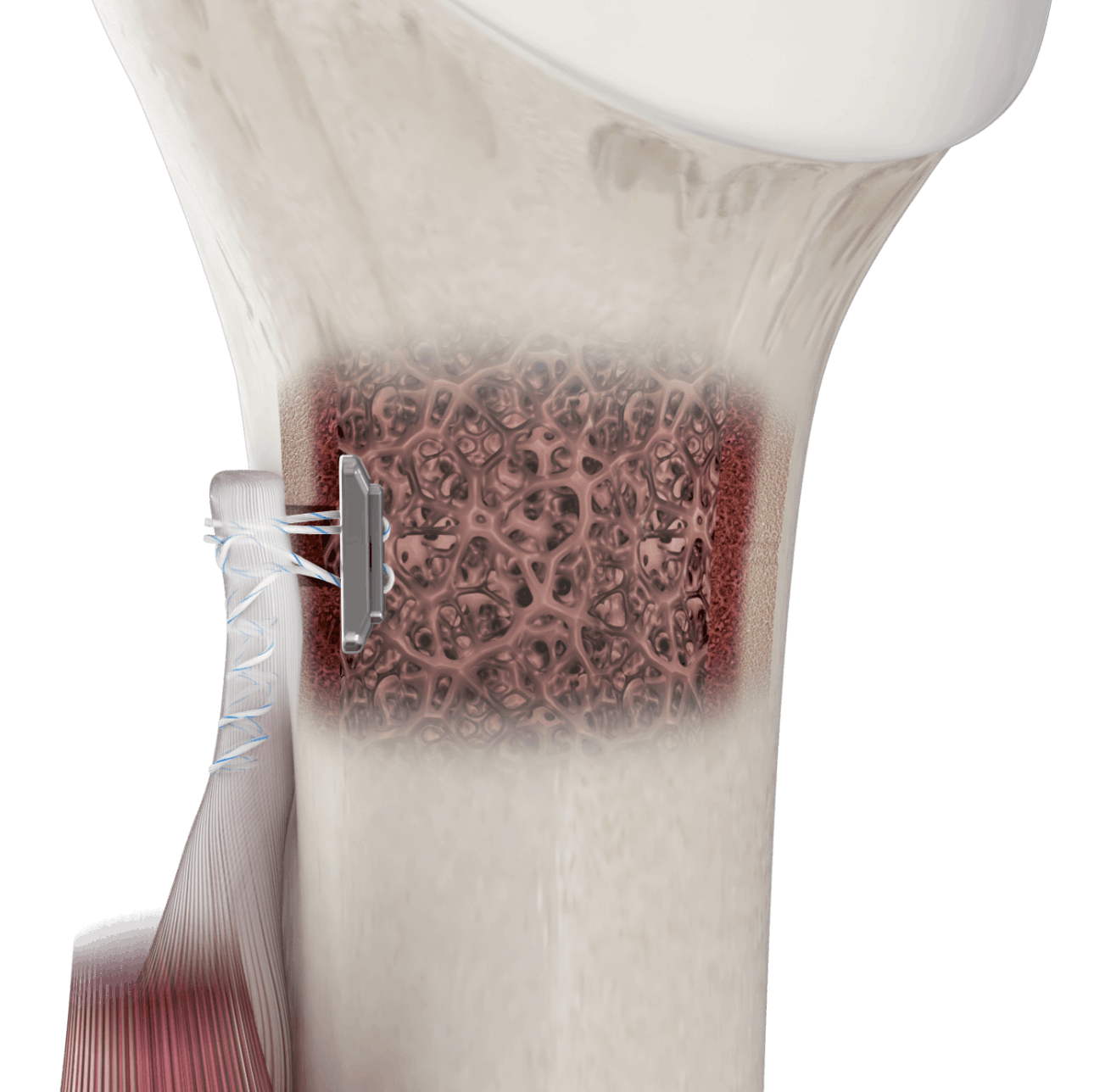

Self Locking Tendon Repair.
